February 02, 2022 | Niels Laan | Neo Coolcam

Neo Coolcam Repeater

Installation on the domoticz:

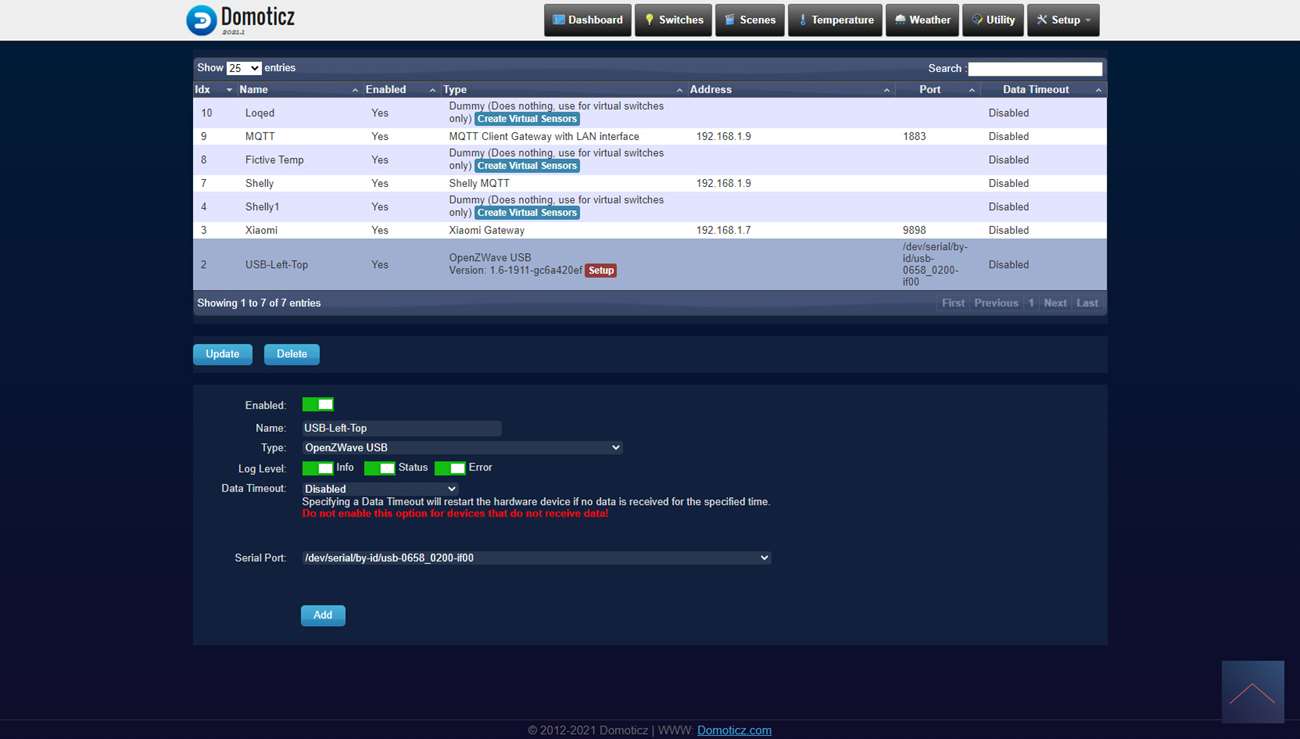

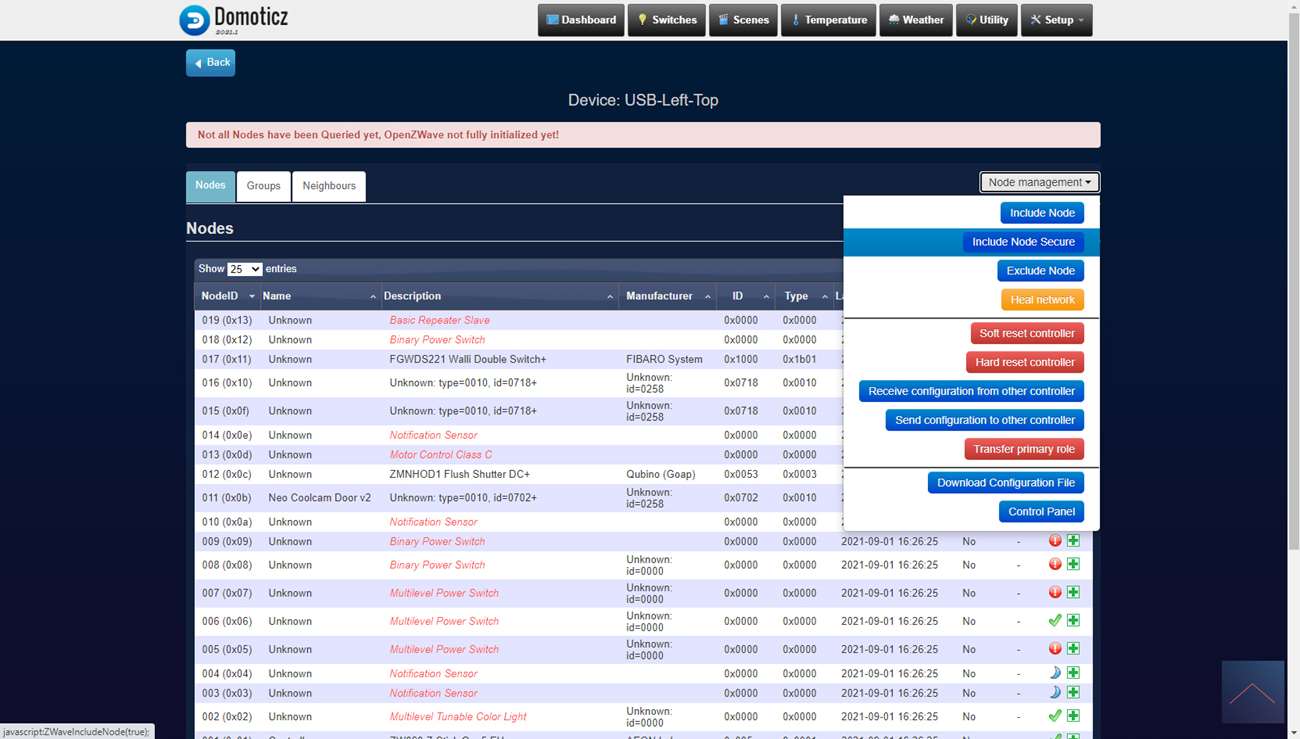

The installation of this repeater starts by supplying it with power. Then log in to Domoticz and go to the menu item "setup" and to "hardware". Then press the setup at the Aeon Labs controller and press include node secure. There will be a pop-up that the controller is in learning mode. Now we have to press and hold the button on the side of the repeater for 5 seconds until the LED lights up, then release the button. Do not wait until the LED is completely off because then the addition will not succeed. The LED will flash blue that it is learning. After a few seconds it gives a message that the addition was successful and I see the LED light up briefly in green.

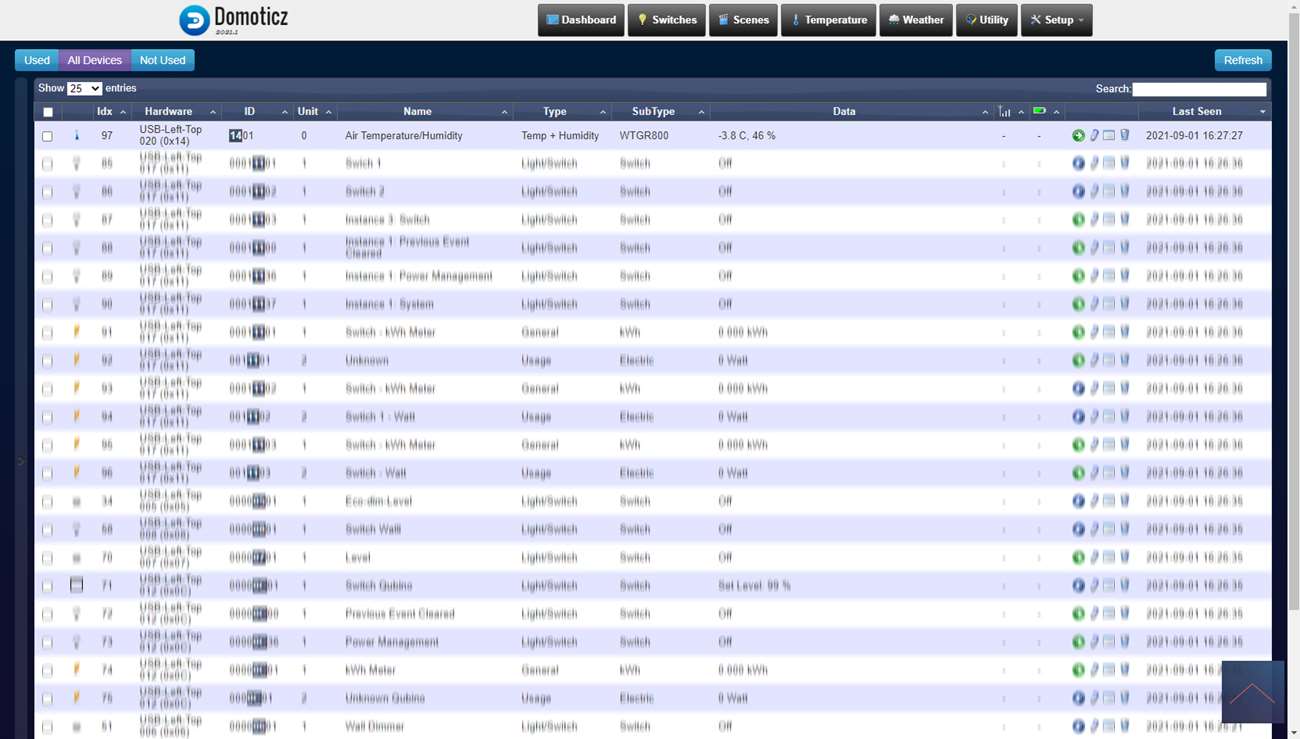

I see several devices appearing in Domoticz so everything seems to have gone well.

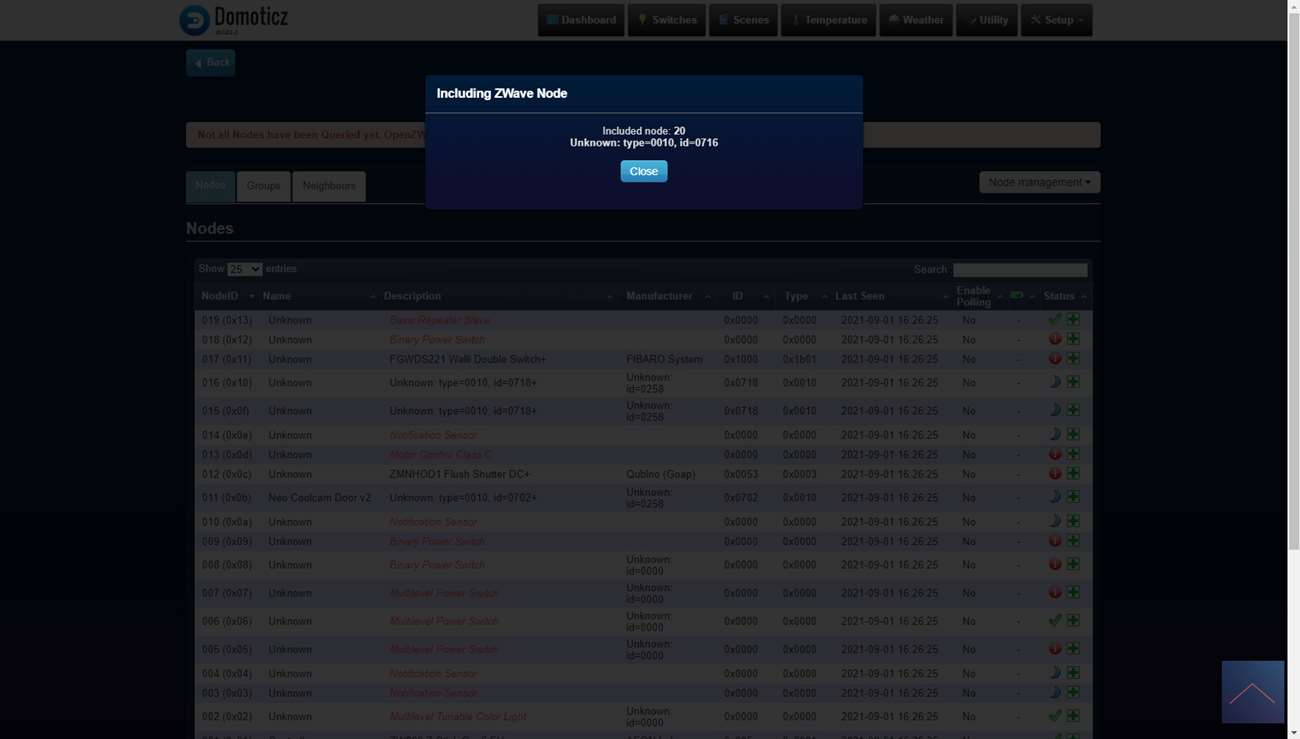

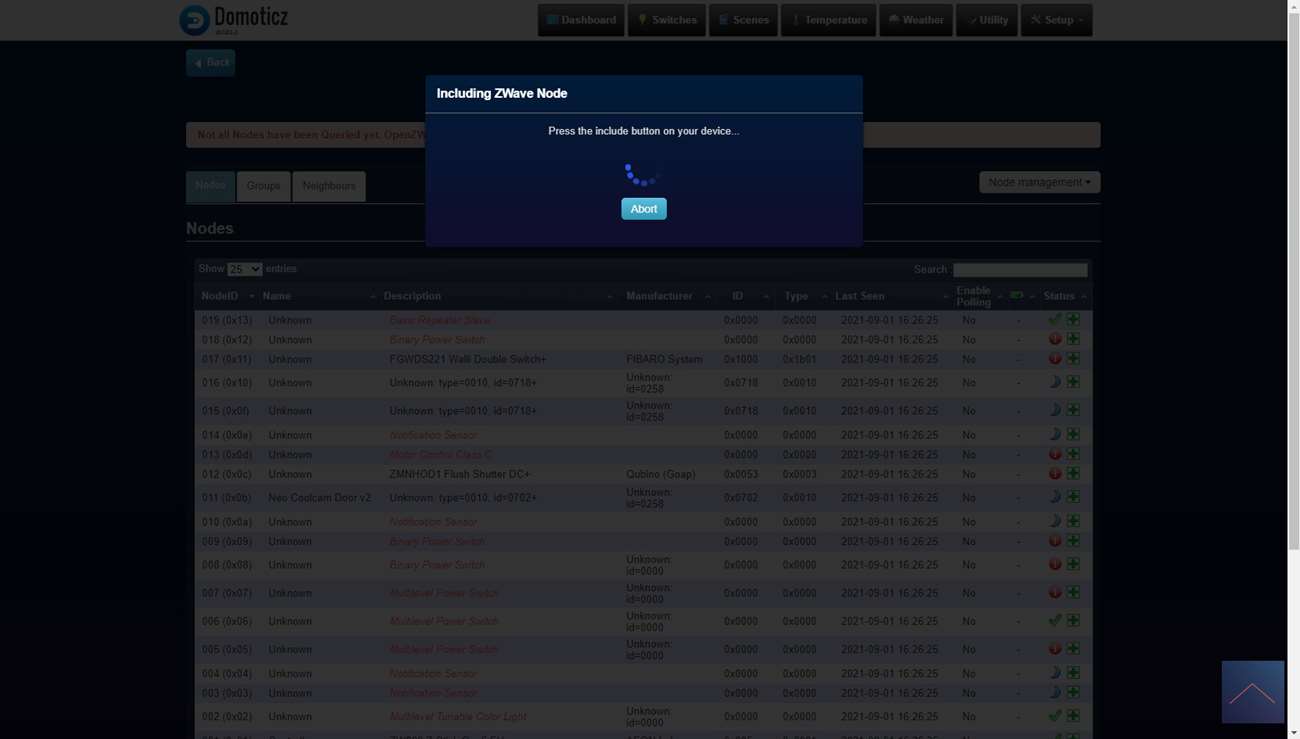

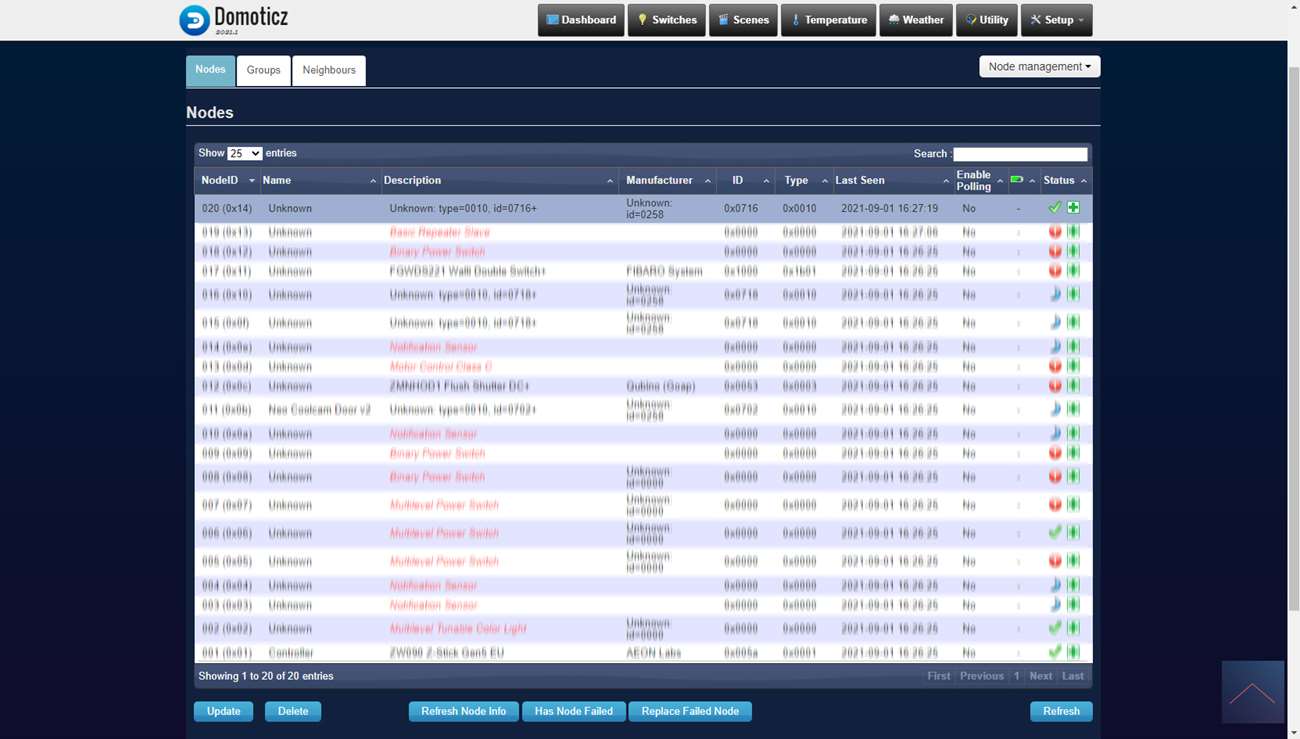

Installation screens:

Operation:

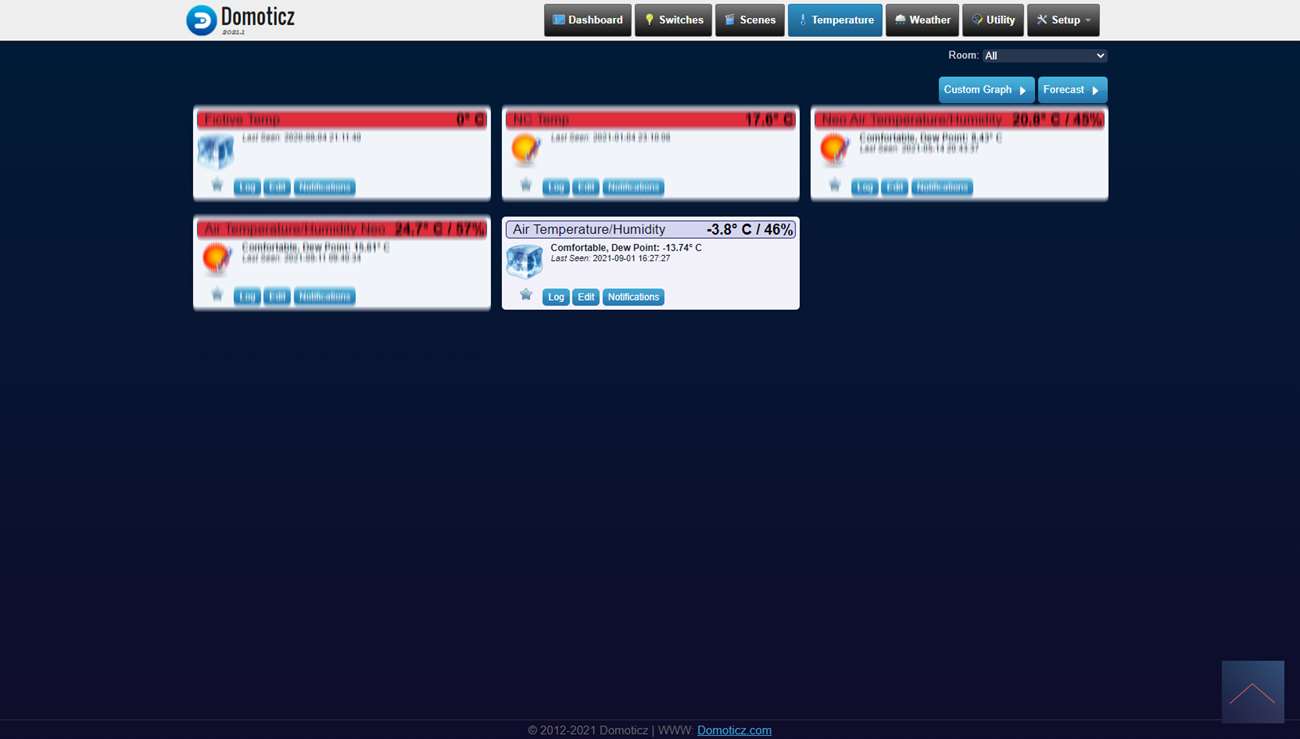

I do indeed see a temperature sensor and humidity sensor appear on my devices. With the temperature sensor it is only noticeable that it indicates - 4.4 degrees. Fortunately, this can be corrected via the configuration/parameters.

Unfortunately, I can't see whether the repeater works.

Example event:

We make a rule when the sensor exceeds 85% humidity that the fan in the bathroom is turned on.
