Qubino Luxy Smart Light

Installation at Home Assistant (HASS):

The first step to install this smart light is to determine where it will go in your house. When installing, provide a 50mm deep flush-mounted box (preferably 60mm) and you also need a blue (N) wire. You can get this from a socket, among other things.

The manual includes a diagram how to connect it. Make sure you work safely by disconnecting the power. When you have closed everything again, turn on the power again.

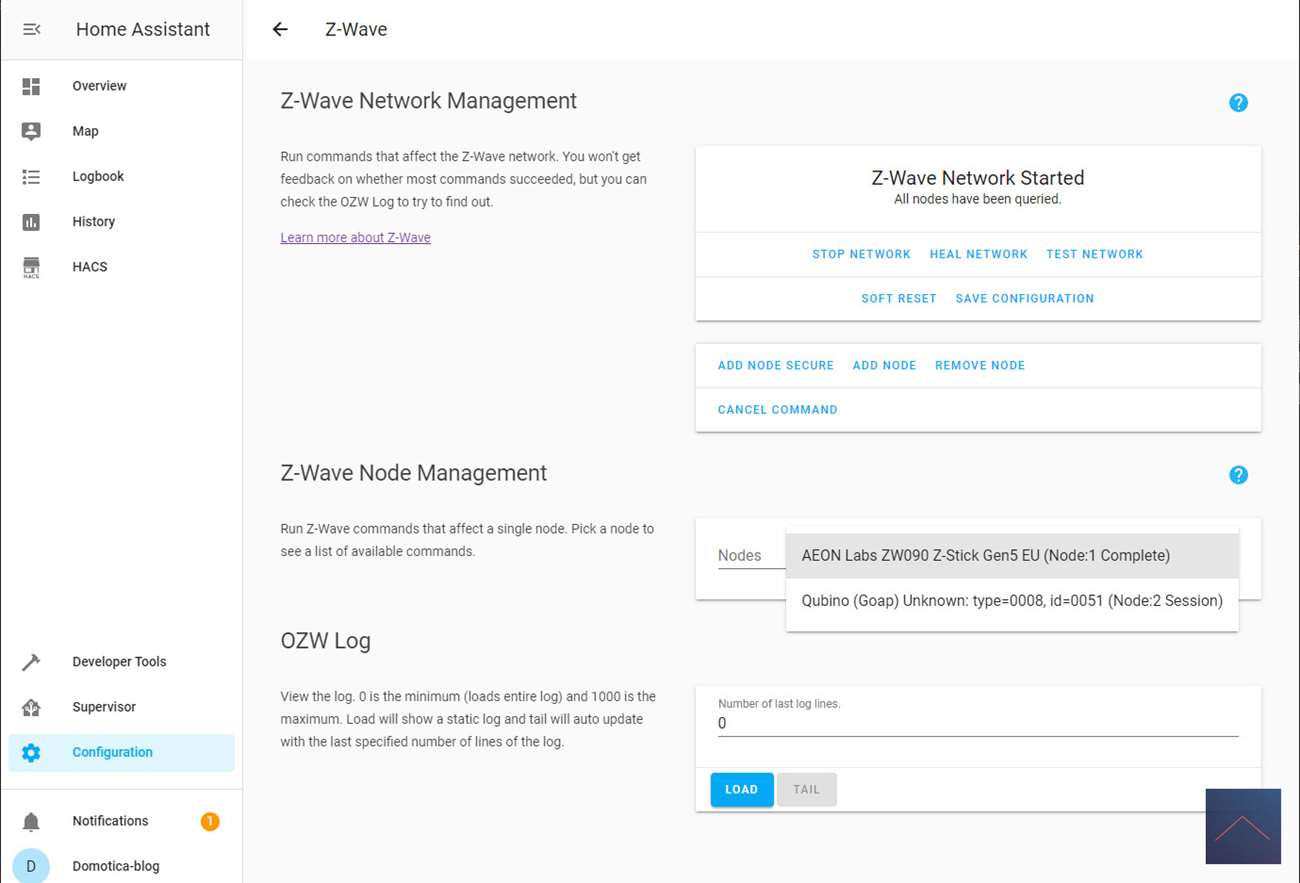

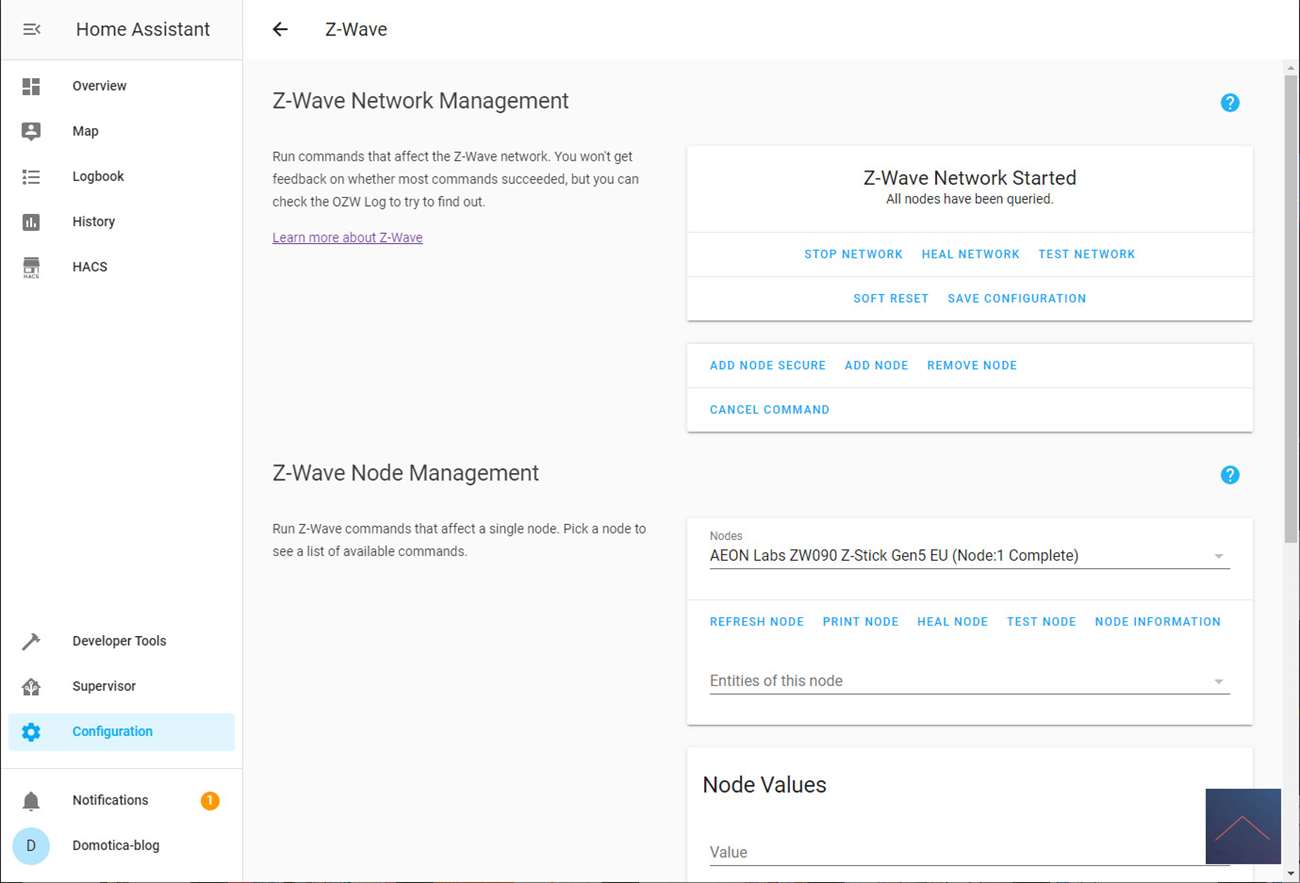

Now that we have done the installation, we log in to Hass via your browser and go to your configuration and then to Z-Wave. Then click on "add node secure" to start adding. Now we also have to activate this on the Luxy.

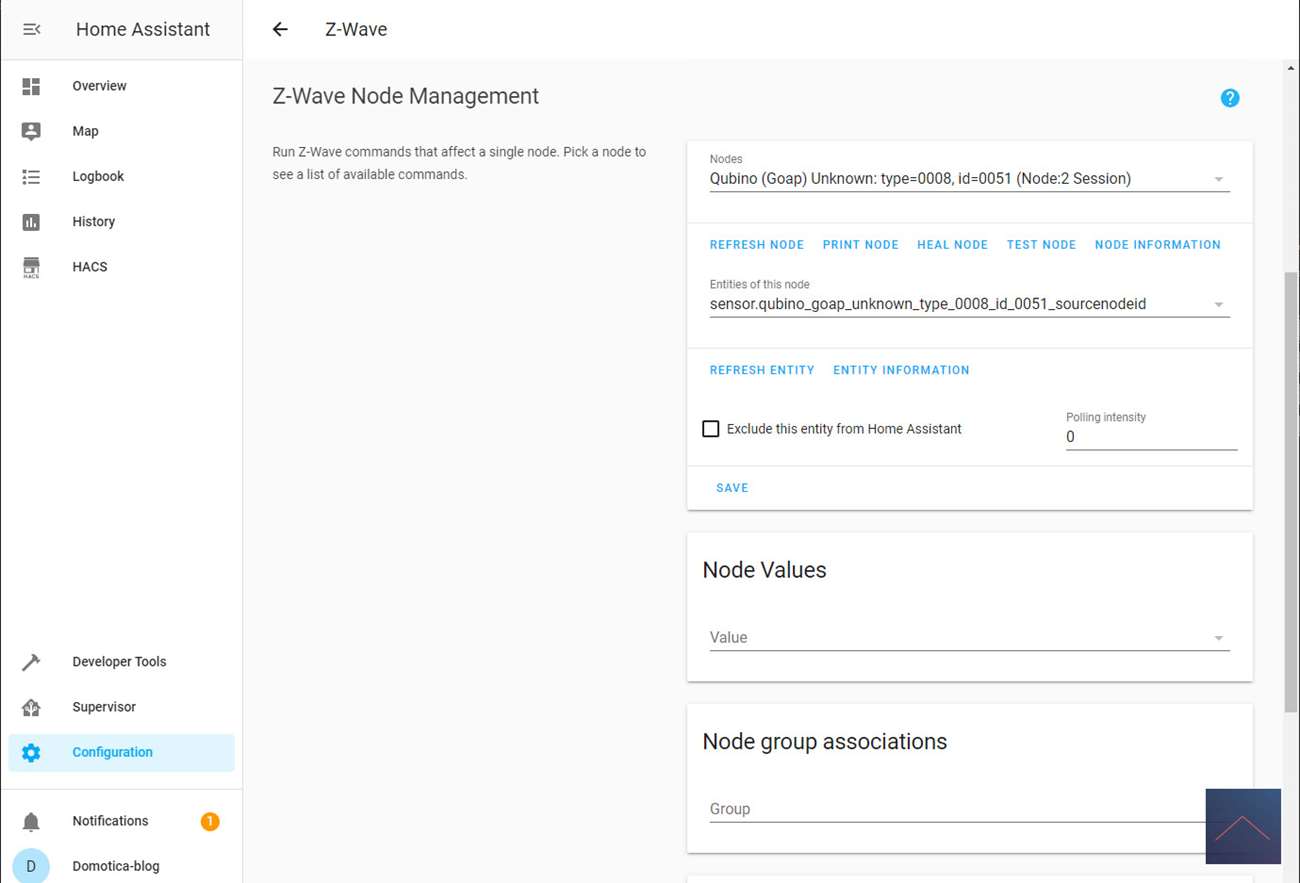

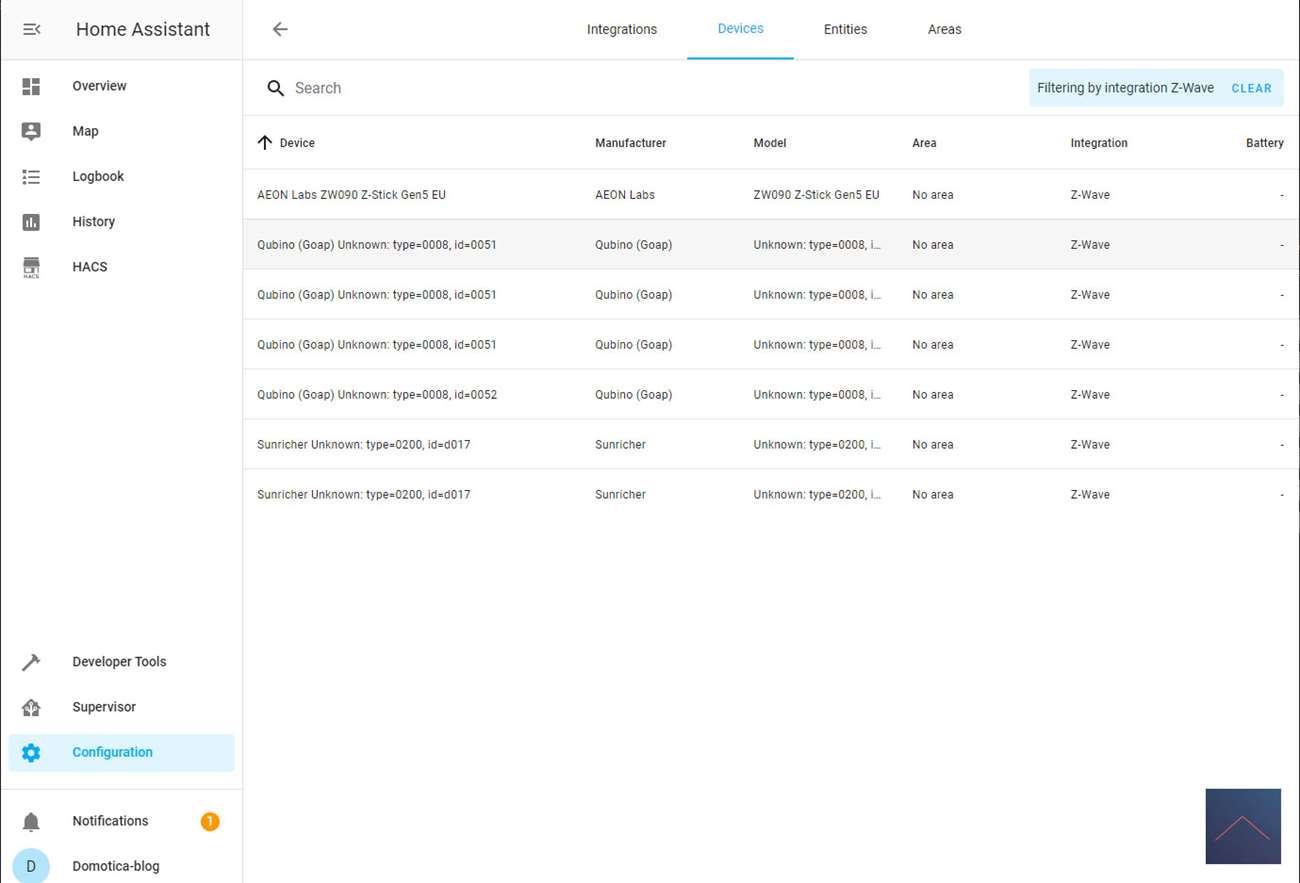

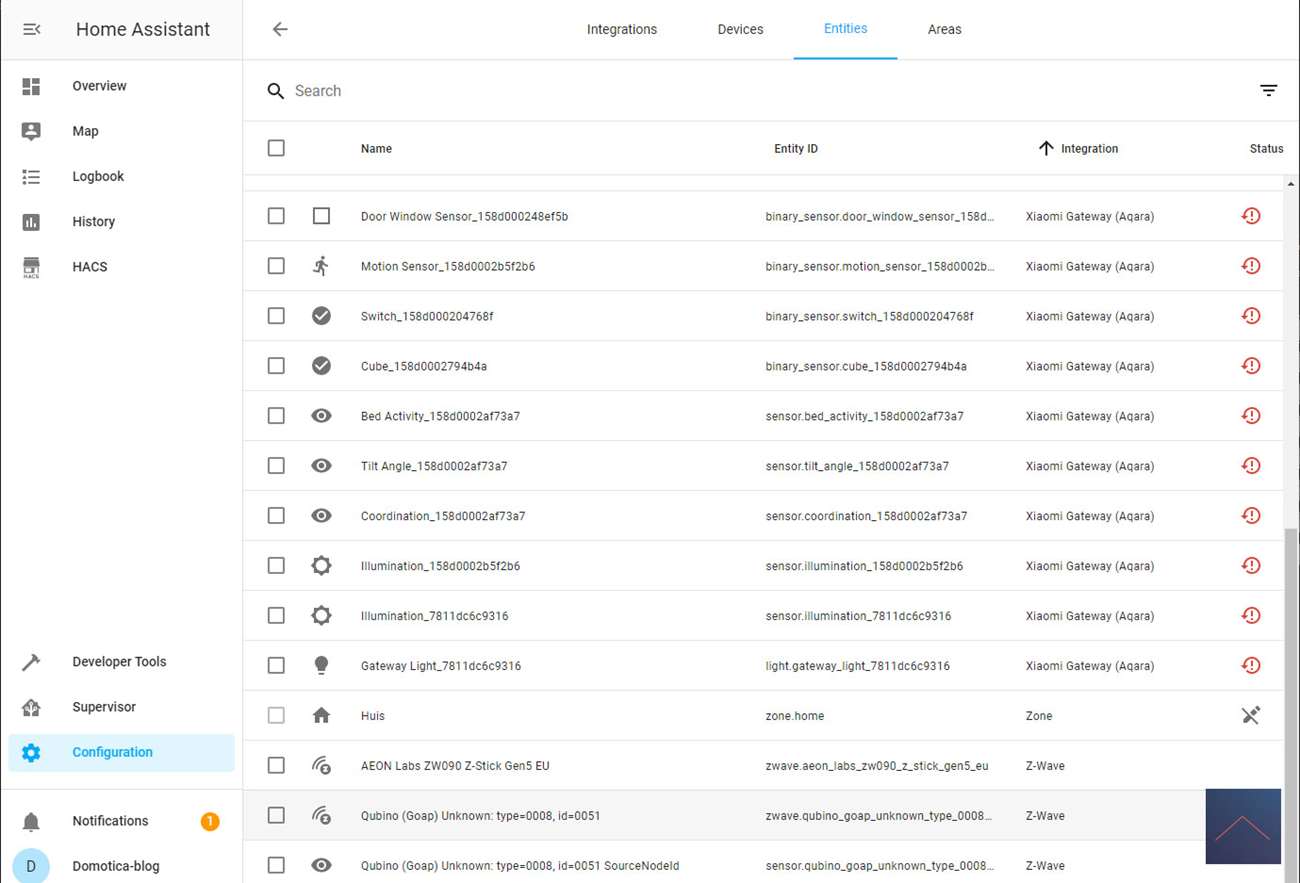

You can do this as follows: 1x right click (2) and 1x under click (3). The LED will now go into "white mode", now we can hold the right button (4 > 9 sec) to actually start adding. As usual we don't see anything changing in HASS, but when I look at the devices, I see a Qubino Unknow. That does not bode well and this is true because I cannot operate it.
