Qubino Luxy Smart Light

Installation via the ZipaTile/ZipaBox:

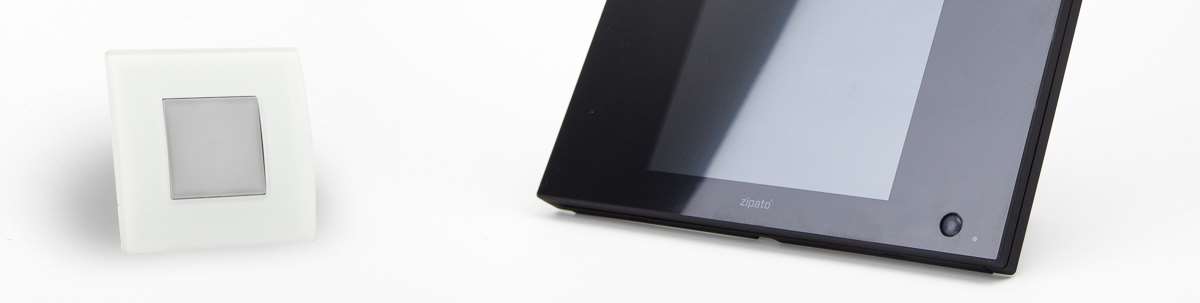

The next controller is the ZipaTile. Zipato always has its support in order, so I expect few problems with this Luxy.

The first step is to install the Luxy in place according to the supplied schedule. Make sure you have a blue wire in your wall socket, otherwise you cannot connect it. It is recommended to have a flush-mounted box of at least 50mm deep.

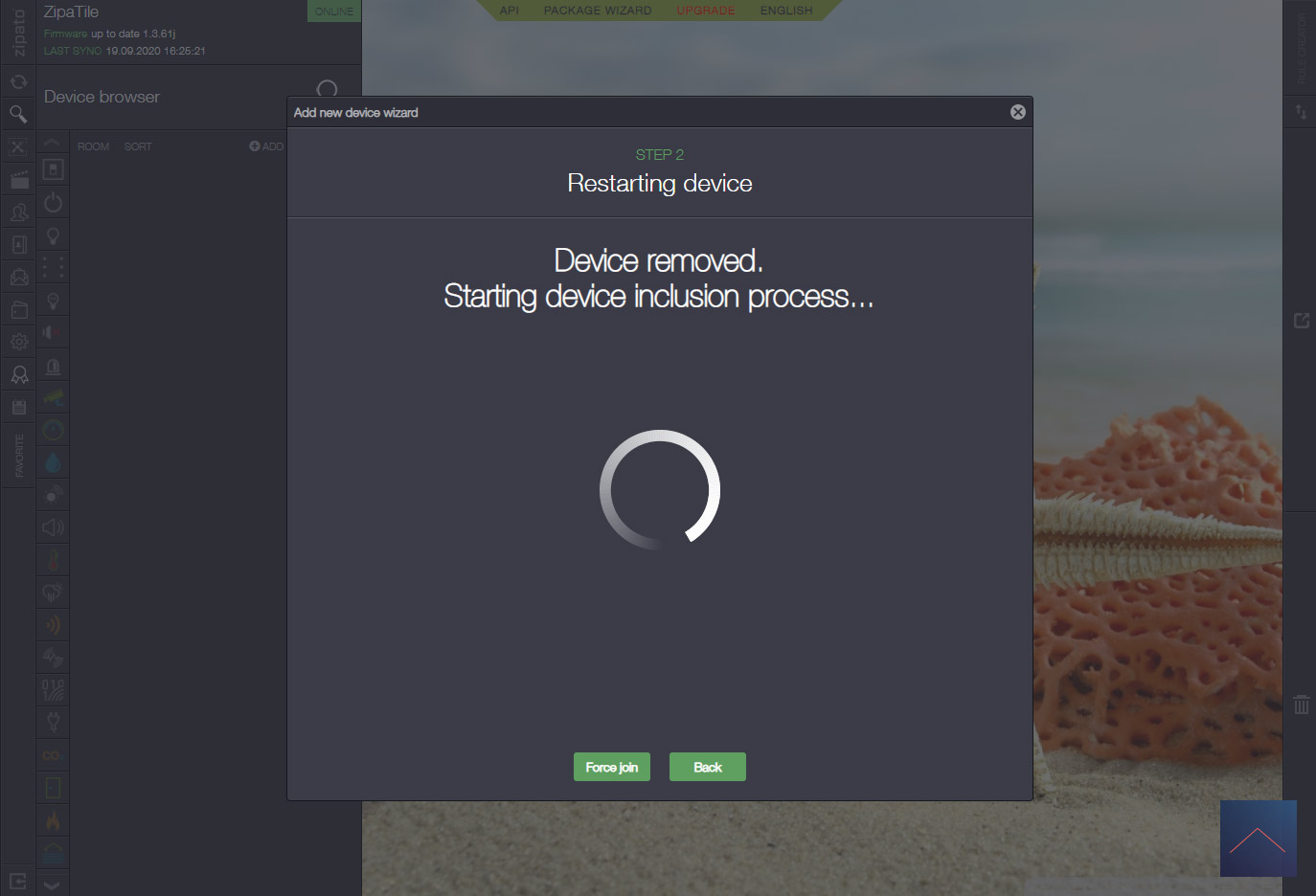

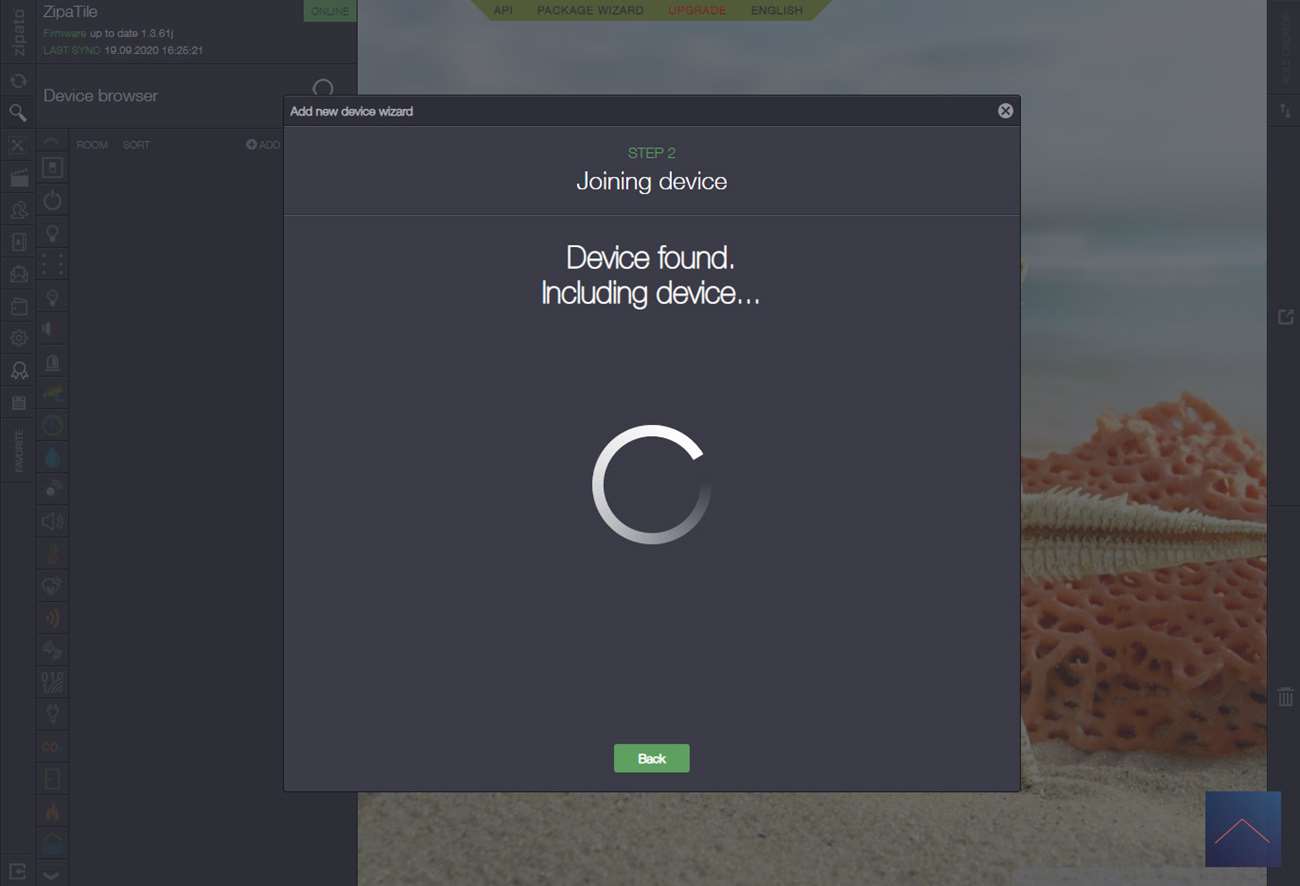

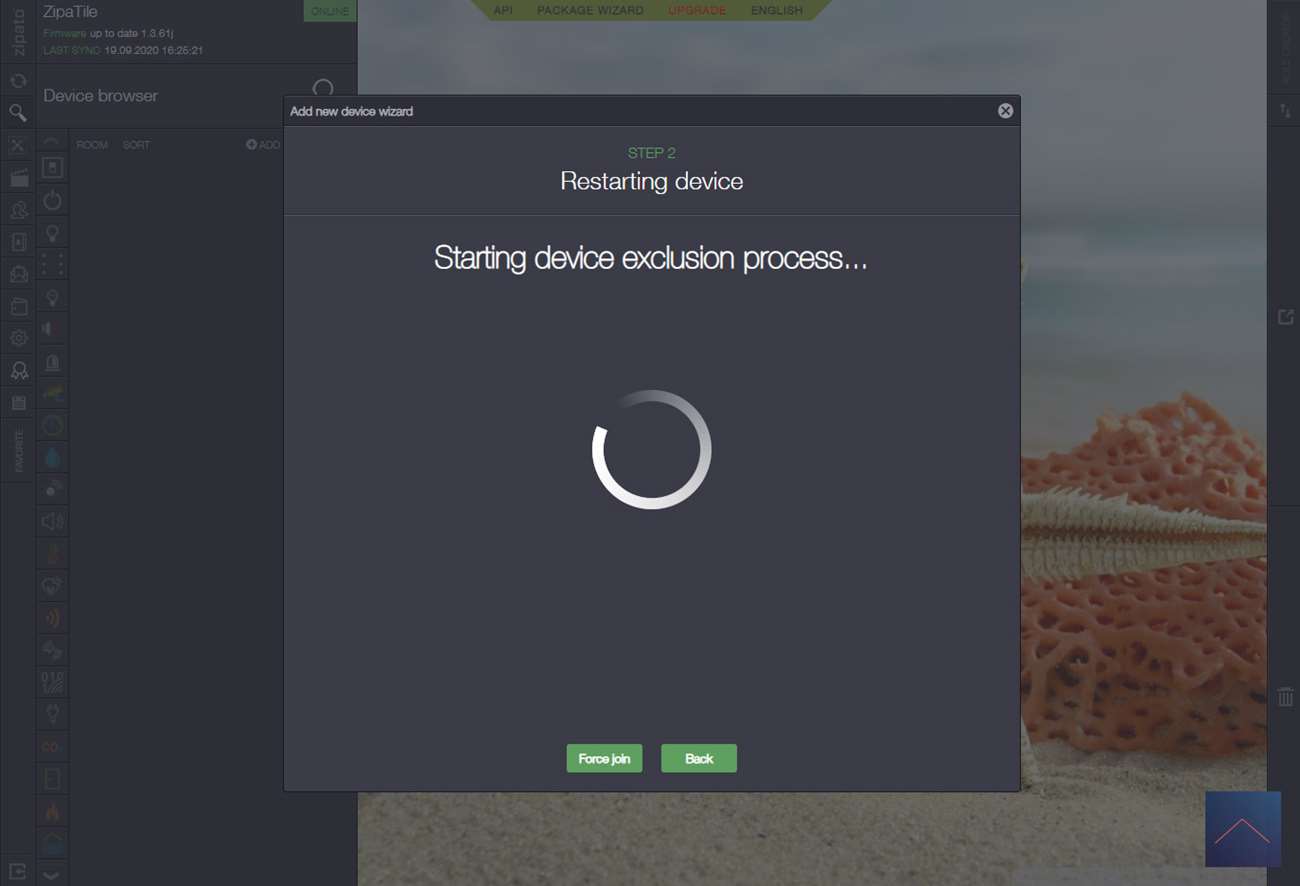

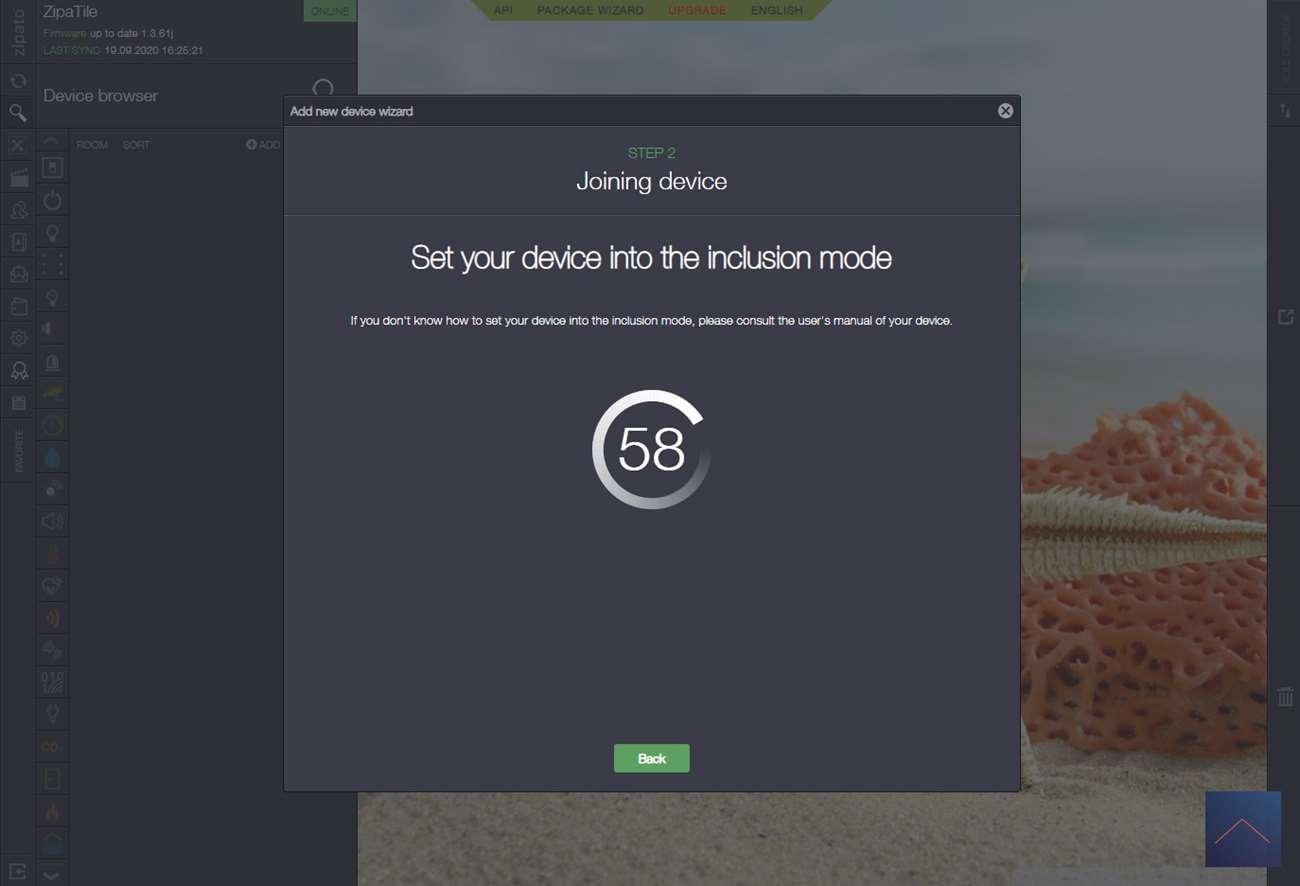

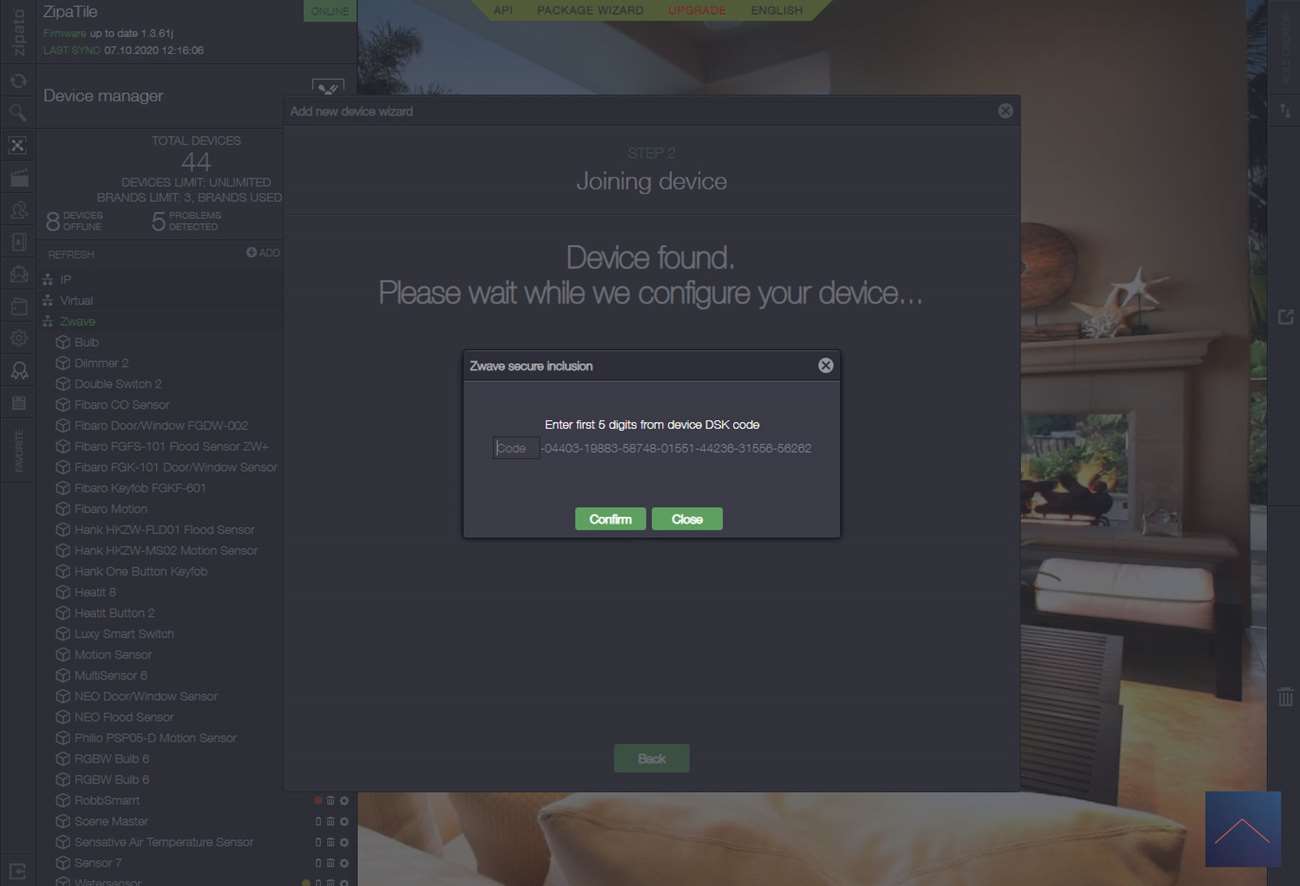

The next step is to login to the ZipaTile and go to your devices. Then click on "add new device" and then on Z-wave. The ZipaTile will first ask to reset the module. We can do this by applying the power to the module and performing the following actions: press the right button (3) 1x, then press the bottom button (4) 1x. The LED will turn white and then you have to press and hold the right button (3) for 4-9 seconds. The LED will now flash green and light up fully after 10 seconds. After this you repeat this action again. As a last step I have to enter the SDK code. You can find this on the sticker supplied.

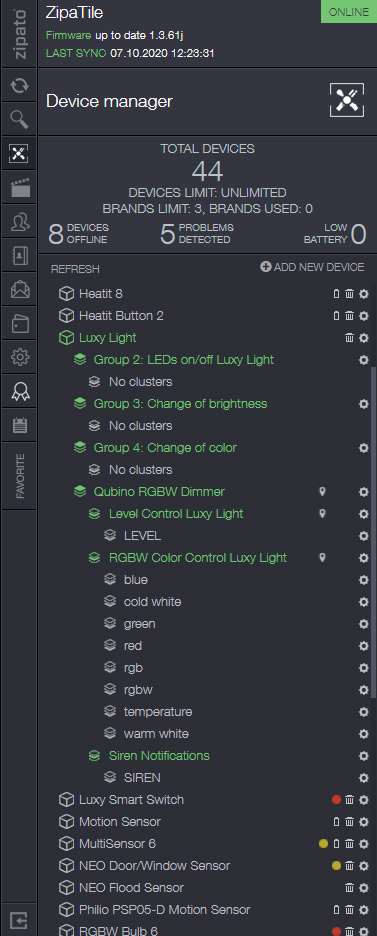

I see it being added to the ZipaTile and can control the LED. Unfortunately it is not possible to turn the buzzer on or off.

Qubino indicates that it is working together with Zipato on good support.

Control:

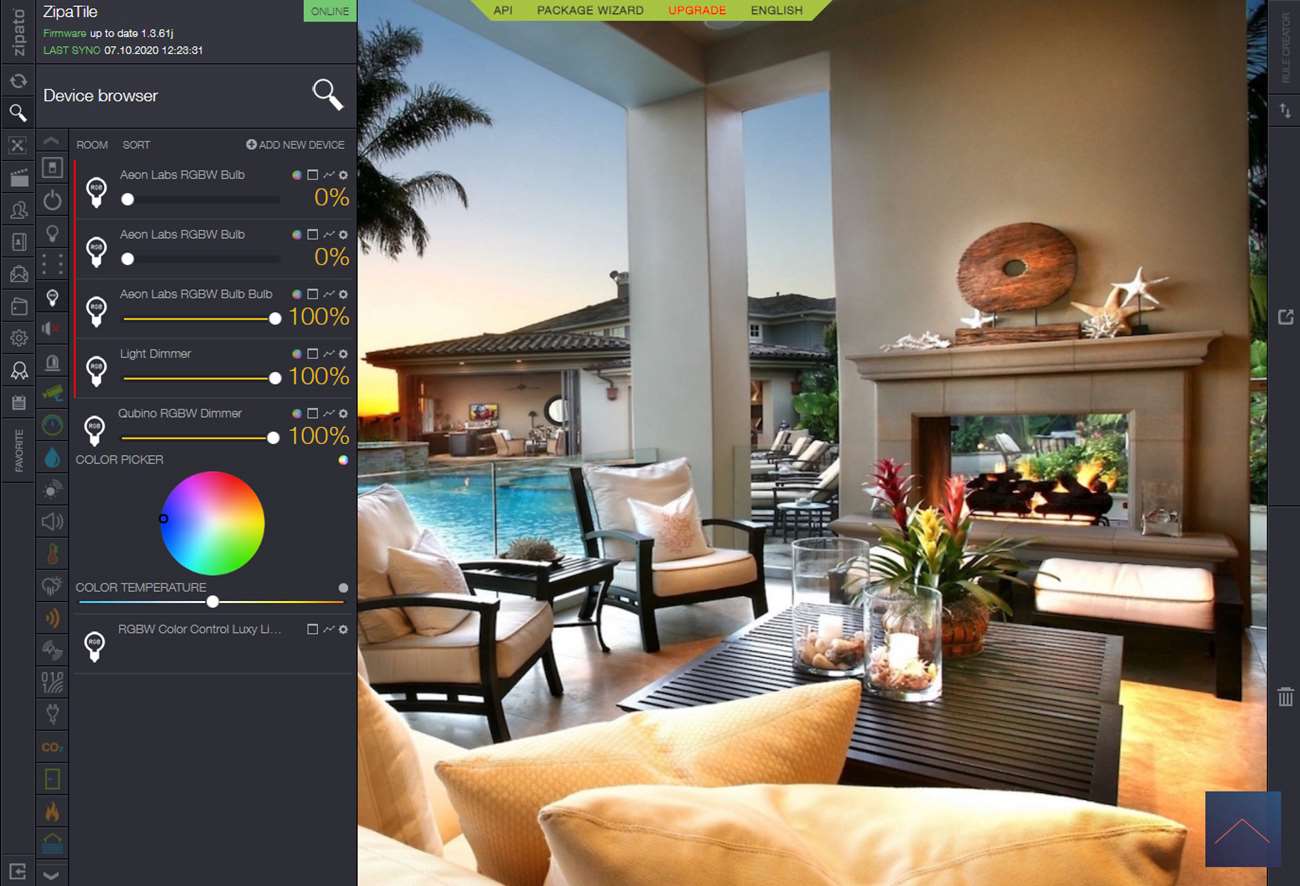

Unfortunately I can only operate the LED (color, dim level and on/off).

Rule creator options:

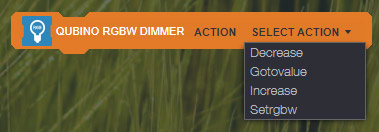

Action:

Sensor:

Example:

When the alarm is triggered, the LED should light up red.
